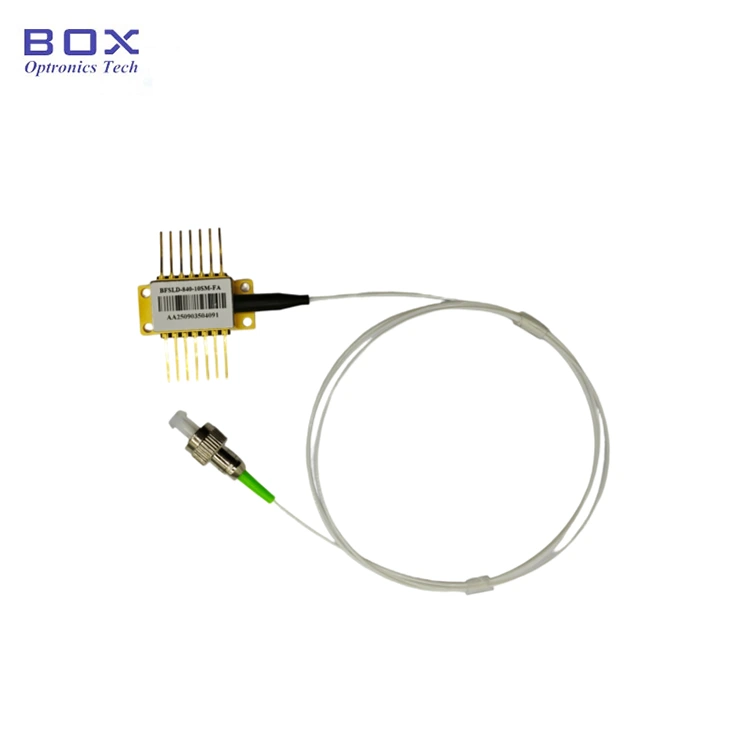

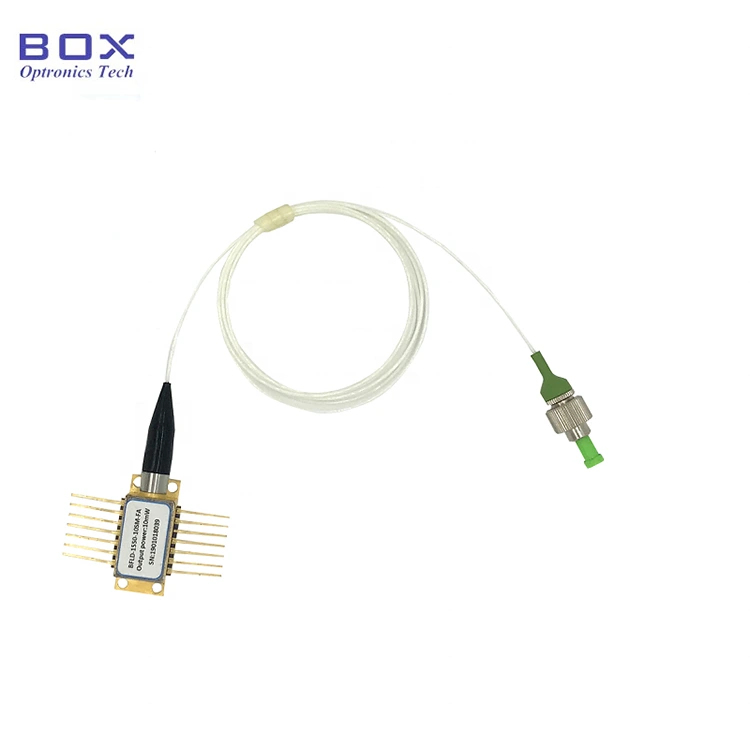

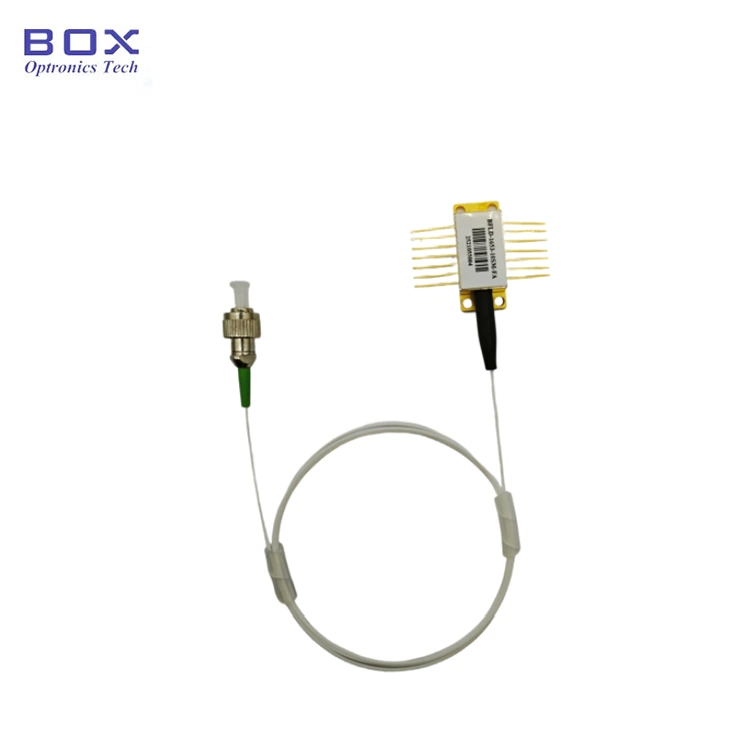

10mW C+L ब्यान्ड DWDM DFB लेजर डायोड

प्यारामिटर

प्रतीक

अवस्था

न्यूनतम

टाइप गर्नुहोस्।

अधिकतम

एकाइ

भण्डारण तापमान

Ts

-

-४०

-

85

°C

अपरेटिङ केस तापमान

शीर्ष

-

-२०

-

70

°C

फर्वार्ड वर्तमान

IF

CW

-

-

200

mA

लेजर रिभर्स भोल्टेज

VLR

-

-

-

2

V

PD फर्वार्ड वर्तमान

IFPD

-

-

-

5

mA

PD रिभर्स भोल्टेज

VRPD

-

-

-

10

V

TEC वर्तमान

ITEC

-

-

-१.५

+१.५

A

TEC भोल्टेज

VTEC

-

-

-३.५

+३.५

V

प्यारामिटर

प्रतीक

परीक्षण अवस्था

न्यूनतम

टाइप गर्नुहोस्।

अधिकतम

एकाइ

केन्द्र तरंगदैर्ध्य

λc

TL=15~35°C, CW

चयन गरिएका च्यानलहरूमा देखाइन्छ

nm

पीक अप्टिकल आउटपुट पावर

PO

-

10

-

-

mW

स्पेक्ट्रल रेखा चौडाई

LW

FWHM

-

3

5

MHz

साइड-मोड दमन अनुपात

SMSR

CW

40

50

-

dB

अप्टिकल अलगाव

-

-

30

-

-

dB

सापेक्ष तीव्रता शोर

RIN

20-1000MHz

-

-

-१४५

dB/Hz

तरंगदैर्ध्य बहाव (EOL)

Δλ

25 वर्षको जीवनकाल

-

-

± ०.१

nm

तरंगदैर्ध्य तापमान गुणांक

Δλ/ΔT

TEC 15°C देखि 35°C

-

0.09

-

nm/°C

तरंगदैर्ध्य वर्तमान गुणांक

Δλ/ΔI

-

-

0.01

-

nm/mA

प्यारामिटर

प्रतीक

परीक्षण अवस्था

न्यूनतम

टाइप गर्नुहोस्।

अधिकतम

एकाइ

थ्रेसहोल्ड वर्तमान

इथ

-

-

10

35

mA

ढलान दक्षता

η

PO=10mW, CW

0.05

0.13

0.2

mW/mA

सञ्चालन वर्तमान

Iop

PO=10mW, CW

-

100

150

mA

TEC सेट तापमान

Ts

-

15

-

35

°C

लेजर फर्वार्ड भोल्टेज

VF

PO=10mW, CW

-

1.2

3.0

V

PD हालको निगरानी गर्नुहोस्

IMPD

PO=10mW, CW

10

-

2500

μA

गाढा वर्तमान निगरानी गर्नुहोस्

ID

IF=0mA, VRPD=5V

-

-

0.1

μA

थर्मिस्टर वर्तमान

ITC

-

10

-

100

μA

थर्मिस्टर प्रतिरोध

RTH

TL=25°C

9.5

10

10.5

kΩ

थर्मिस्टर स्थिर

B

-

3800

-

4100

K

TEC वर्तमान

ITEC

TL=25°C, TC=70°C

-१.५

-

+१.५

A

TEC भोल्टेज

VTEC

TL=25°C, TC=70°C

-३.५

-

+३.५

V

TEC क्षमता

ΔT

Tc=70°C

-

-

50

°C

च्यानल

भाग नम्बर

न्यूनतम तरंगदैर्ध्य (nm)

टाइप गर्नुहोस्। तरंगदैर्ध्य (nm)

अधिकतम तरंगदैर्ध्य (nm)

एकाइ

C63

BFLD-C63-10XX-XX

1527.02

1527.22

1527.42

nm

H62

BFLD-H62-10XX-XX

1527.40

1527.60

1527.80

nm

C62

BFLD-C62-10XX-XX

1527.79

1527.99

1528.19

nm

H61

BFLD-H61-10XX-XX

1528.18

1528.38

1528.58

nm

C61

BFLD-C61-10XX-XX

1528.57

1528.77

1528.97

nm

H60

BFLD-H60-10XX-XX

1528.96

1529.16

1529.36

nm

C60

BFLD-C60-10XX-XX

1529.35

1529.55

1529.75

nm

H59

BFLD-H59-10XX-XX

1529.74

1529.94

1530.14

nm

C59

BFLD-C59-10XX-XX

1530.13

1530.33

1530.53

nm

H58

BFLD-H58-10XX-XX

1530.52

1530.72

1530.92

nm

C58

BFLD-C58-10XX-XX

1530.92

1531.12

1531.32

nm

H57

BFLD-H57-10XX-XX

1531.31

1531.51

1531.71

nm

C57

BFLD-C57-10XX-XX

1531.70

1531.90

1532.10

nm

H56

BFLD-H56-10XX-XX

1532.09

1532.29

1532.49

nm

C56

BFLD-C56-10XX-XX

1532.48

1532.68

1532.88

nm

H55

BFLD-H55-10XX-XX

1532.87

1533.07

1533.27

nm

C55

BFLD-C55-10XX-XX

1533.27

1533.47

1533.67

nm

H54

BFLD-H54-10XX-XX

1533.66

1533.86

1534.06

nm

C54

BFLD-C54-10XX-XX

1534.05

1534.25

1534.45

nm

H53

BFLD-H53-10XX-XX

1534.44

1534.64

1534.84

nm

C53

BFLD-C53-10XX-XX

1534.84

1535.04

1535.24

nm

H52

BFLD-H52-10XX-XX

1535.23

1535.43

1535.63

nm

C52

BFLD-C52-10XX-XX

1535.62

1535.82

1536.02

nm

H51

BFLD-H51-10XX-XX

1536.02

1536.22

1536.42

nm

C51

BFLD-C51-10XX-XX

1536.41

1536.61

1536.81

nm

H50

BFLD-H50-10XX-XX

1536.80

1537.00

1537.20

nm

C50

BFLD-C50-10XX-XX

1537.20

1537.40

1537.60

nm

H49

BFLD-H49-10XX-XX

1537.59

1537.79

1537.99

nm

C49

BFLD-C49-10XX-XX

1537.99

1538.19

1538.39

nm

H48

BFLD-H48-10XX-XX

1538.38

1538.58

1538.78

nm

C48

BFLD-C48-10XX-XX

1538.78

1538.98

1539.18

nm

H47

BFLD-H47-10XX-XX

1539.17

1539.37

1539.57

nm

C47

BFLD-C47-10XX-XX

1539.57

1539.77

1539.97

nm

H46

BFLD-H46-10XX-XX

1539.96

1540.16

1540.36

nm

C46

BFLD-C46-10XX-XX

1540.36

1540.56

1540.76

nm

H45

BFLD-H45-10XX-XX

1540.75

1540.95

1541.15

nm

C45

BFLD-C45-10XX-XX

1541.15

1541.35

1541.55

nm

H44

BFLD-H44-10XX-XX

1541.55

1541.75

1541.95

nm

C44

BFLD-C44-10XX-XX

1541.94

1542.14

1542.34

nm

H43

BFLD-H43-10XX-XX

1542.34

1542.54

1542.74

nm

C43

BFLD-C43-10XX-XX

1542.74

1542.94

1543.14

nm

H42

BFLD-H42-10XX-XX

1543.13

1543.33

1543.53

nm

C42

BFLD-C42-10XX-XX

1543.53

1543.73

1543.93

nm

H41

BFLD-H41-10XX-XX

1543.93

1544.13

1544.33

nm

C41

BFLD-C41-10XX-XX

1544.33

1544.53

1544.73

nm

H40

BFLD-H40-10XX-XX

1544.72

1544.92

1545.12

nm

C40

BFLD-C40-10XX-XX

1545.12

1545.32

1545.52

nm

H39

BFLD-H39-10XX-XX

1545.52

1545.72

1545.92

nm

C39

BFLD-C39-10XX-XX

1545.92

1546.12

1546.32

nm

H38

BFLD-H38-10XX-XX

1546.32

1546.52

1546.72

nm

C38

BFLD-C38-10XX-XX

1546.72

1546.92

1547.12

nm

H37

BFLD-H37-10XX-XX

1547.12

1547.32

1547.52

nm

C37

BFLD-C37-10XX-XX

1547.52

1547.72

1547.92

nm

H36

BFLD-H36-10XX-XX

1547.91

1548.11

1548.31

nm

C36

BFLD-C36-10XX-XX

1548.31

1548.51

1548.71

nm

H35

BFLD-H35-10XX-XX

1548.71

1548.91

1549.11

nm

C35

BFLD-C35-10XX-XX

1549.12

1549.32

1549.52

nm

H34

BFLD-H34-10XX-XX

1549.52

1549.72

1549.92

nm

C34

BFLD-C34-10XX-XX

1549.92

1550.12

1550.32

nm

H33

BFLD-H33-10XX-XX

1550.32

1550.52

1550.72

nm

C33

BFLD-C33-10XX-XX

1550.72

1550.92

1551.12

nm

H32

BFLD-H32-10XX-XX

1551.12

1551.32

1551.52

nm

C32

BFLD-C32-10XX-XX

1551.52

1551.72

1551.92

nm

H31

BFLD-H31-10XX-XX

1551.92

1552.12

1552.32

nm

C31

BFLD-C31-10XX-XX

1552.32

1552.52

1552.72

nm

H30

BFLD-H30-10XX-XX

1552.73

1552.93

1553.13

nm

C30

BFLD-C30-10XX-XX

1553.13

1553.33

1553.53

nm

H29

BFLD-H29-10XX-XX

1553.53

1553.73

1553.93

nm

C29

BFLD-C29-10XX-XX

1553.93

1554.13

1554.33

nm

H28

BFLD-H28-10XX-XX

1554.34

1554.54

1554.74

nm

C28

BFLD-C28-10XX-XX

1554.74

1554.94

1555.14

nm

H27

BFLD-H27-10XX-XX

1555.14

1555.34

1555.54

nm

C27

BFLD-C27-10XX-XX

1555.55

1555.75

1555.95

nm

H26

BFLD-H26-10XX-XX

1555.95

1556.15

1556.35

nm

C26

BFLD-C26-10XX-XX

1556.35

1556.55

1556.75

nm

H25

BFLD-H25-10XX-XX

1556.76

1556.96

1557.16

nm

C25

BFLD-C25-10XX-XX

1557.16

1557.36

1557.56

nm

H24

BFLD-H24-10XX-XX

1557.57

1557.77

1557.97

nm

C24

BFLD-C24-10XX-XX

1557.97

1558.17

1558.37

nm

H23

BFLD-H23-10XX-XX

1558.38

1558.58

1558.78

nm

C23

BFLD-C23-10XX-XX

1558.78

1558.98

1559.18

nm

H22

BFLD-H22-10XX-XX

1559.19

1559.39

1559.59

nm

C22

BFLD-C22-10XX-XX

1559.59

1559.79

1559.99

nm

H21

BFLD-H21-10XX-XX

1560.00

1560.20

1560.40

nm

C21

BFLD-C21-10XX-XX

1560.41

1560.61

1560.81

nm

H20

BFLD-H20-10XX-XX

1560.81

1561.01

1561.21

nm

C20

BFLD-C20-10XX-XX

1561.22

1561.42

1561.62

nm

H19

BFLD-H19-10XX-XX

1561.63

1561.83

1562.03

nm

C19

BFLD-C19-10XX-XX

1562.03

1562.23

1562.43

nm

H18

BFLD-H18-10XX-XX

1562.44

1562.64

1562.84

nm

C18

BFLD-C18-10XX-XX

1562.85

1563.05

1563.25

nm

H17

BFLD-H17-10XX-XX

1563.25

1563.45

1563.65

nm

C17

BFLD-C17-10XX-XX

1563.66

1563.86

1564.06

nm

H16

BFLD-H16-10XX-XX

1564.07

1564.27

1564.47

nm

C16

BFLD-C16-10XX-XX

1564.48

1564.68

1564.88

nm

H15

BFLD-H15-10XX-XX

1564.89

1565.09

1565.29

nm

C15

BFLD-C15-10XX-XX

1565.30

1565.50

1565.70

nm

H14

BFLD-H14-10XX-XX

1565.70

1565.90

1566.10

nm

C14

BFLD-C14-10XX-XX

1566.11

1566.31

1566.51

nm

H13

BFLD-H13-10XX-XX

1566.52

1566.72

1566.92

nm

C13

BFLD-C13-10XX-XX

1566.93

1567.13

1567.33

nm

H12

BFLD-H12-10XX-XX

1567.34

1567.54

1567.74

nm

C12

BFLD-C12-10XX-XX

1567.75

1567.95

1568.15

nm

H11

BFLD-H11-10XX-XX

1568.16

1568.36

1568.56

nm

C11

BFLD-C11-10XX-XX

1568.57

1568.77

1568.97

nm

H10

BFLD-H10-10XX-XX

1568.98

1569.18

1569.38

nm

C10

BFLD-C10-10XX-XX

1569.39

1569.59

1569.79

nm

H09

BFLD-H09-10XX-XX

1569.81

1570.01

1570.21

nm

C09

BFLD-C09-10XX-XX

1570.22

1570.42

1570.62

nm

H08

BFLD-H08-10XX-XX

1570.63

1570.83

1571.03

nm

C08

BFLD-C08-10XX-XX

1571.04

1571.24

1571.44

nm

H07

BFLD-H07-10XX-XX

1571.45

1571.65

1571.85

nm

C07

BFLD-C07-10XX-XX

1571.86

1572.06

1572.26

nm

H06

BFLD-H06-10XX-XX

1572.28

1572.48

1572.68

nm

C06

BFLD-C06-10XX-XX

1572.69

1572.89

1573.09

nm

H05

BFLD-H05-10XX-XX

1573.10

1573.30

1573.50

nm

C05

BFLD-C05-10XX-XX

1573.51

1573.71

1573.91

nm

H04

BFLD-H04-10XX-XX

1573.93

1574.13

1574.33

nm

C04

BFLD-C04-10XX-XX

1574.34

1574.54

1574.74

nm

H03

BFLD-H03-10XX-XX

1574.75

1574.95

1575.15

nm

C03

BFLD-C03-10XX-XX

1575.17

1575.37

1575.57

nm

H02

BFLD-H02-10XX-XX

1575.58

1575.78

1575.98

nm

C02

BFLD-C02-10XX-XX

1576.00

1576.20

1576.40

nm

H01

BFLD-H01-10XX-XX

1576.41

1576.61

1576.81

nm

C01

BFLD-C01-10XX-XX

1576.83

1577.03

1577.23

nm

Q00

BFLD-Q00-10XX-XX

1577.24

1577.44

1577.64

nm

L00

BFLD-L00-10XX-XX

1577.66

1577.86

1578.06

nm

Q99

BFLD-Q99-10XX-XX

1578.07

1578.27

1578.47

nm

L99

BFLD-L99-10XX-XX

1578.49

1578.69

1578.89

nm

Q98

BFLD-Q98-10XX-XX

1578.90

1579.10

1579.30

nm

L98

BFLD-L98-10XX-XX

1579.32

1579.52

1579.72

nm

Q97

BFLD-Q97-10XX-XX

1579.73

1579.93

1580.13

nm

L97

BFLD-L97-10XX-XX

1580.15

1580.35

1580.55

nm

Q96

BFLD-Q96-10XX-XX

1580.57

1580.77

1580.97

nm

L96

BFLD-L96-10XX-XX

1580.98

1581.18

1581.38

nm

Q95

BFLD-Q95-10XX-XX

1581.40

1581.60

1581.80

nm

L95

BFLD-L95-10XX-XX

1581.82

1582.02

1582.22

nm

Q94

BFLD-Q94-10XX-XX

1582.24

1582.44

1582.64

nm

L94

BFLD-L94-10XX-XX

1582.65

1582.85

1583.05

nm

Q93

BFLD-Q93-10XX-XX

1583.07

1583.27

1583.47

nm

L93

BFLD-L93-10XX-XX

1583.49

1583.69

1583.89

nm

प्रश्न ९२

BFLD-Q92-10XX-XX

1583.91

1584.11

1584.31

nm

L92

BFLD-L92-10XX-XX

1584.33

1584.53

1584.73

nm

Q91

BFLD-Q91-10XX-XX

1584.75

1584.95

1585.15

nm

L91

BFLD-L91-10XX-XX

1585.16

1585.36

1585.56

nm

Q90

BFLD-Q90-10XX-XX

1585.58

1585.78

1585.98

nm

L90

BFLD-L90-10XX-XX

1586.00

1586.20

1586.40

nm

प्रश्न ८९

BFLD-Q89-10XX-XX

1586.42

1586.62

1586.82

nm

L89

BFLD-L89-10XX-XX

1586.84

1587.04

1587.24

nm

Q88

BFLD-Q88-10XX-XX

1587.26

1587.46

1587.66

nm

L88

BFLD-L88-10XX-XX

1587.68

1587.88

1588.08

nm

Q87

BFLD-Q87-10XX-XX

1588.10

1588.30

1588.50

nm

L87

BFLD-L87-10XX-XX

1588.53

1588.73

1588.93

nm

प्रश्न ८६

BFLD-Q86-10XX-XX

1588.95

1589.15

1589.35

nm

L86

BFLD-L86-10XX-XX

1589.37

1589.57

1589.77

nm

Q85

BFLD-Q85-10XX-XX

1589.79

1589.99

1590.19

nm

L85

BFLD-L85-10XX-XX

1590.21

1590.41

1590.61

nm

Q84

BFLD-Q84-10XX-XX

1590.63

1590.83

1591.03

nm

L84

BFLD-L84-10XX-XX

1591.06

1591.26

1591.46

nm

Q83

BFLD-Q83-10XX-XX

1591.48

1591.68

1591.88

nm

L83

BFLD-L83-10XX-XX

1591.90

1592.10

1592.30

nm

प्रश्न ८२

BFLD-Q82-10XX-XX

1592.32

1592.52

1592.72

nm

L82

BFLD-L82-10XX-XX

1592.75

1592.95

1593.15

nm

प्रश्न ८१

BFLD-Q81-10XX-XX

1593.17

1593.37

1593.57

nm

L81

BFLD-L81-10XX-XX

1593.59

1593.79

1593.99

nm

Q80

BFLD-Q80-10XX-XX

1594.02

1594.22

1594.42

nm

L80

BFLD-L80-10XX-XX

1594.44

1594.64

1594.84

nm

Q79

BFLD-Q79-10XX-XX

1594.86

1595.06

1595.26

nm

L79

BFLD-L79-10XX-XX

1595.29

1595.49

1595.69

nm

Q78

BFLD-Q78-10XX-XX

1595.71

1595.91

1596.11

nm

L78

BFLD-L78-10XX-XX

1596.14

1596.34

1596.54

nm

Q77

BFLD-Q77-10XX-XX

1596.56

1596.76

1596.96

nm

L77

BFLD-L77-10XX-XX

1596.99

1597.19

1597.39

nm

Q76

BFLD-Q76-10XX-XX

1597.42

1597.62

1597.82

nm

L76

BFLD-L76-10XX-XX

1597.84

1598.04

1598.24

nm

Q75

BFLD-Q75-10XX-XX

1598.27

1598.47

1598.67

nm

L75

BFLD-L75-10XX-XX

1598.69

1598.89

1599.09

nm

Q74

BFLD-Q74-10XX-XX

1599.12

1599.32

1599.52

nm

L74

BFLD-L74-10XX-XX

1599.55

1599.75

1599.95

nm

Q73

BFLD-Q73-10XX-XX

1599.97

1600.17

1600.37

nm

L73

BFLD-L73-10XX-XX

1600.40

1600.60

1600.80

nm

Q72

BFLD-Q72-10XX-XX

1600.83

1601.03

1601.23

nm

L72

BFLD-L72-10XX-XX

1601.26

1601.46

1601.66

nm

Q71

BFLD-Q71-10XX-XX

1601.68

1601.88

1602.08

nm

L71

BFLD-L71-10XX-XX

1602.11

1602.31

1602.51

nm

Q70

BFLD-Q70-10XX-XX

1602.54

1602.74

1602.94

nm

L70

BFLD-L70-10XX-XX

1602.97

1603.17

1603.37

nm

Q69

BFLD-Q69-10XX-XX

1603.40

1603.60

1603.80

nm

L69

BFLD-L69-10XX-XX

1603.83

1604.03

1604.23

nm

Q68

BFLD-Q68-10XX-XX

1604.26

1604.46

1604.66

nm

L68

BFLD-L68-10XX-XX

1604.68

1604.88

1605.08

nm

Q67

BFLD-Q67-10XX-XX

1605.11

1605.31

1605.51

nm

L67

BFLD-L67-10XX-XX

1605.54

1605.74

1605.94

nm

Q66

BFLD-Q66-10XX-XX

1605.97

1606.17

1606.37

nm

L66

BFLD-L66-10XX-XX

1606.40

1606.60

1606.80

nm

Q65

BFLD-Q65-10XX-XX

1606.84

1607.04

1607.24

nm

L65

BFLD-L65-10XX-XX

1607.27

1607.47

1607.67

nm

Q64

BFLD-Q64-10XX-XX

1607.70

1607.90

1608.10

nm

L64

BFLD-L64-10XX-XX

1608.13

1608.33

1608.53

nm

Q63

BFLD-Q63-10XX-XX

1608.56

1608.76

1608.96

nm

L63

BFLD-L63-10XX-XX

1608.99

1609.19

1609.39

nm

Q62

BFLD-Q62-10XX-XX

1609.42

1609.62

1609.82

nm

L62

BFLD-L62-10XX-XX

1609.86

1610.06

1610.26

nm

Q61

BFLD-Q61-10XX-XX

1610.29

1610.49

1610.69

nm

L61

BFLD-L61-10XX-XX

1610.72

1610.92

1611.12

nm

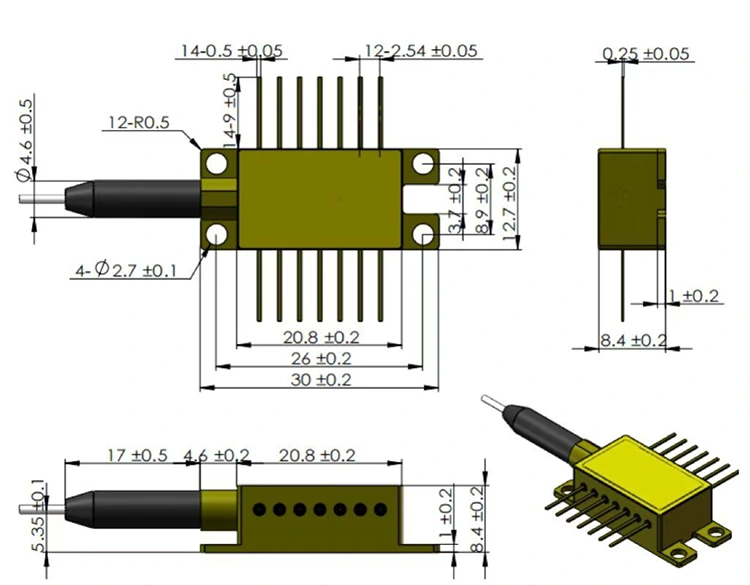

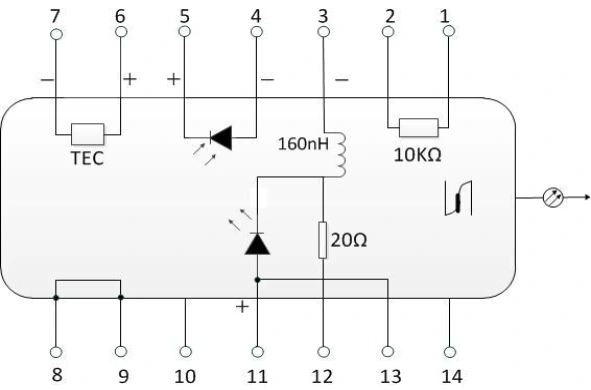

पिन

विवरण

पिन

विवरण

1

थर्मिस्टर

14

NC (कुनै जडान छैन)

2

थर्मिस्टर

13

लेजर एनोड (+)

3

लेजर DC पूर्वाग्रह (क्याथोड) (-)

12

लेजर आरएफ क्याथोड (-)

4

PD मनिटर एनोड (-)

11

लेजर एनोड (+)

5

PD मनिटर क्याथोड (+)

10

NC (कुनै जडान छैन)

6

TEC (+)

9

केस ग्राउन्ड

7

TEC (-)

8

केस ग्राउन्ड

पिन

विवरण

पिन

विवरण

1

TEC (+)

14

TEC (-)

2

थर्मिस्टर

13

केस ग्राउन्ड

3

PD मनिटर एनोड (-)

12

NC (कुनै जडान छैन)

4

PD मनिटर क्याथोड (+)

11

लेजर क्याथोड (-)

5

थर्मिस्टर

10

लेजर एनोड (+)

6

NC (कुनै जडान छैन)

9

NC (कुनै जडान छैन)

7

NC (कुनै जडान छैन)

8

NC (कुनै जडान छैन)

क्षेत्र

कोड

विवरण

लेजर प्रकार

BFLD

ButterflyDFB लेजर डायोड

तरंगदैर्ध्य

Cxx /Hxx/ Lxx/Qxx

C63-C01orH62-H01 वा L00-L61 वा Q00-Q61

आउटपुट पावर

10

10mW

फाइबर प्रकार

SM / PM

SM = एकल-मोड (SMF-28e);

PM = ध्रुवीकरण-रखरखाव (PM1550)

कनेक्टर प्रकार

FA/SA

FA = FC/APC; SA = SC/APC; अन्य कनेक्टरहरू उपलब्ध छन्

पिनआउट

NULL / 2

NULL = टाइप १  (पूर्वनिर्धारित);

 २ = टाइप २ पम्प
